Generate your own application with the CQRS design pattern thanks to JHipster.NET
One of its official blueprints is called JHipster.NET. It allows to override the back-end part in asp.net core (instead of Java spring boot).
To take advantage of this blueprint, we will generate a modern application which implements the Mediator and CQRS pattern.
CQRS stands for Command Query Responsibility Segregation. In .NET you have the possibility to easily implement this pattern thanks to MediatR.
This pattern separates a service’s write tasks from its read tasks. While reading and writing to the same database is acceptable for small applications, distributed applications operating at web-scale require a segmented approach.
Hopefully, thanks to JHipster implementing CQRS to your application isn’t a big deal.

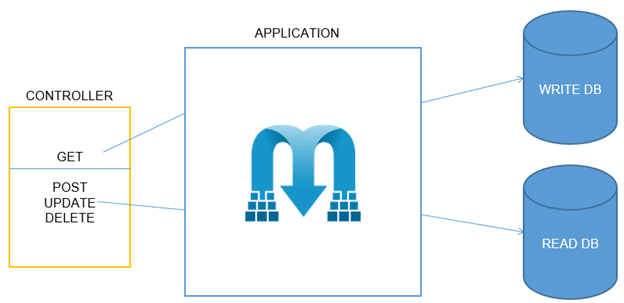

The Mediator pattern adds a layer called Application which allows to separate your commands and queries. Meaning that your controllers delegate all the CRUD logic to your Application layer, then your Application layer finds which database it needs to interact with, which service/repository to use etc...
The easiest way to implement CQRS with the Mediator pattern is to add ReadOnlyRepositories. Those repositories will be used by queries, when your commands will use the original repositories. Thanks to that, your commands and queries will be separated.
You may find more information about how to generate your ASP.NET Core application with JHipster.NET in this post.
When generating your application, you can choose to use CQRS.
Make sure to answer Y to enable CQRS.
Make sure to answer Y to enable CQRS.
Enabling it will generate a new “Application” layer (a new solution in your C#) for your commands and queries.
├── Namespace.Application
│ ├── Commands - Your commands
│ │ ├── MyEntity - Your entity
│ │ │ ├── MyEntityCreateCommand - A command
│ │ │ ├── MyEntityCreateCommandHandler - A command handler
│ ├── Queries - Your queries
│ │ ├── MyEntity - Your entity
│ │ │ ├── MyEntityGetQuery - A query
│ │ │ ├── MyEntityGetQueryHandler - A query handler
├── Namespace.Crosscutting
├── Namespace.Domain
├── Namespace.Domain.Services
├── Namespace.Dto
├── Namespace.InfrastructureIn order to create your own commands and/or queries you have to create two classes :
JHipster allows to automatically generates entities. Read this article to get started. Of course it will automatically generates your entities following the CQRS pattern with their commands/queries.
If you want to create your very own commands/queries, here’s an example :
First, let’s create a query
First, let’s create a query
MyEntityGetQuery.cs:namespace MyCompany.Application.Queries {
public class MyEntityGetQuery : IRequest<MyEntity>
{
public long Id { get; set; }
}
}This Query should have an Id and returns a MyEntity object. Here’s the handler
MyEntityGetQueryHandler.cs :namespace MyCompany.Application.Queries {
public class MyEntityGetQueryHandler : IRequestHandler<MyEntityGetQuery, MyEntity>
{
private IReadOnlyMyEntityRepository _myEntityRepository;
public MyEntityGetQueryHandler(IReadOnlyMyEntityRepository myEntityRepository)
{
_myEntityRepository = myEntityRepository;
}
public Task<MyEntity> Handle(MyEntityGetQuery request,
CancellationToken cancellationToken)
{
return _myEntityRepository.QueryHelper()
.GetOneAsync(myEntity => myEntity.Id == request.Id);
}
}
}Please note that we are using a
ReadOnlyRepository rather than a service in order to do the segregation between Commands and Queries. Lastly, create your routing method within your controller :[HttpGet("my-entity/{id}")]
public async Task<IActionResult> GetMyEntity([FromRoute] long id)
{
var result = await _mediator.Send(new MyEntityGetQuery { Id = id });
return ActionResultUtil.WrapOrNotFound(result);
}Now you should be able to generate a modern CQRS Application thanks to JHipster !
Feel free to contribute to JHipster.NET’s GitHub repository and don’t forget to put a star if you liked it.
Feel free to contribute to JHipster.NET’s GitHub repository and don’t forget to put a star if you liked it.
