Deploy an HTTPS Static Website on GCP with GruCloud
The goal of this example is to automate with GruCloud, the deployment of a static website served with HTTPS on GCP, the Google Cloud Platform.
The domain and DNS settings are handled by AWS Route53.
See the manual way at hosting static website
For this reason, this example uses AWS Route53.
This deployment is composed of the resources depicted in the following diagram:
The command gc graph generates this diagram from the code iac.js.
Below are the links to the resource documentation:
The file hook.js contains actions to perform after the infrastructure is deployed and after it is destroyed.
The file route53Utils.js contains functions to add and remove a DNS record of type A to map the domain name to the load balancer's IP address by calling the AWS CLI.
aws route53 list-hosted-zones-by-name --dns-name ${domainName}aws route53 list-resource-record-sets --hosted-zone-id ${hostedZoneId}aws route53 change-resource-record-sets --hosted-zone-id ${hostedZoneId} --change-batch '${changeBatch}'Ensure gc, the GruCloud CLI is installed:

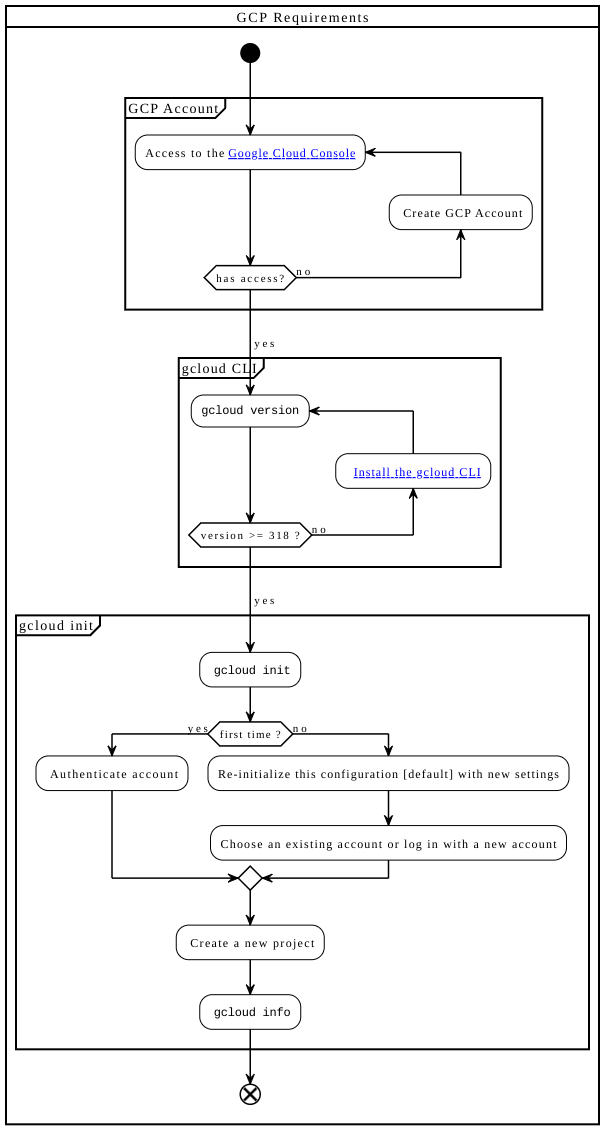

Follow this flowchart to install and configure the
gcloud CLI.
Ensure the AWS CLI is installed as it will be invoked in the hook.js to add and remove a DNS record to map the domain name to the load balancer's IP address.
Let's verify that the AWS account has a domain name registered:
aws route53domains list-domains --region us-east-1{
"Domains": [
{
"DomainName": "grucloud.org",
"AutoRenew": true,
"TransferLock": false,
"Expiry": "2021-11-16T13:56:10+01:00"
}
]
}Alternatively, see the Route53 Domain Listing
Create a Hosted Zone, later on, a DNS record of type A will be created in this zone:
aws route53 create-hosted-zone --name grucloud.org --caller-reference 2021-06-30-2You could also visit the Route53 Dashboard
This example is located at examples/google/storage/website-https
Edit config.js and set the following variables:

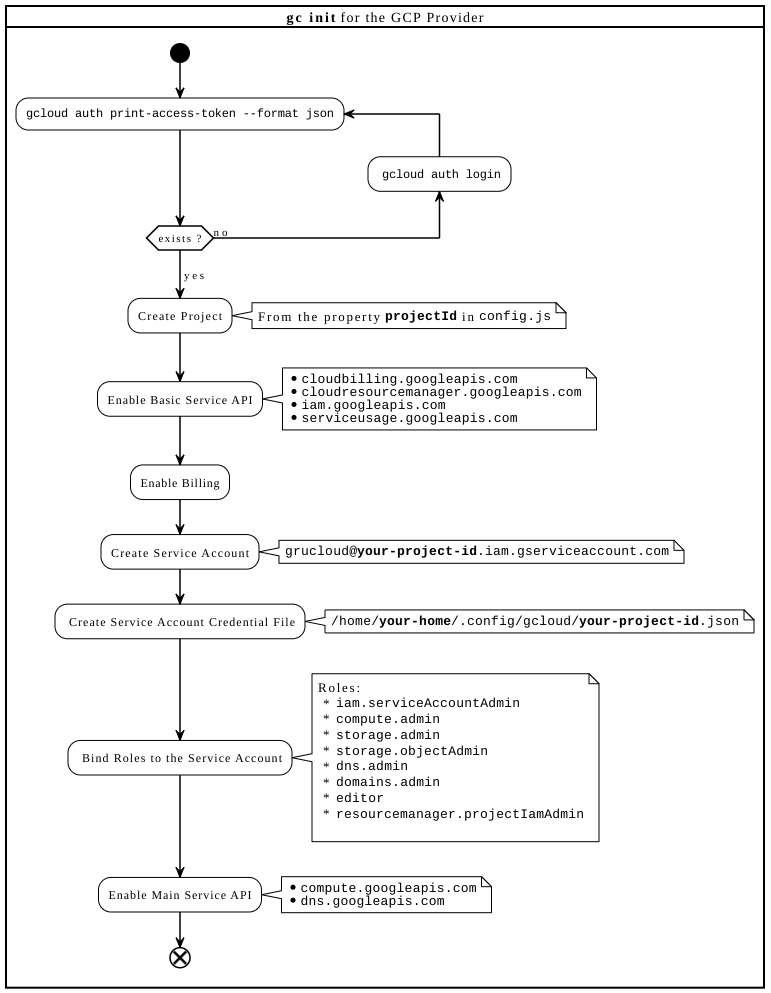

The init command will create the project, set up the billing, enable the API services, create the service account and its credentials file, and bind the IAM roles to this service account
gc init
The service account operating by grucloud needs to be added as the domain owner.
This service account created previously with the init command is in the form of grucloud@YourProjectId.iam.gserviceaccount.com
This service account is also stored in the generated credential file as the client_email property.
To find out where the credential file is located:
To find out where the credential file is located:
gc info- provider:
name: google
type: google
stage: dev
projectId: grucloud-test
projectName: grucloud-test
applicationCredentialsFile: /Users/yourusername/.config/gcloud/your-project-id.json
serviceAccountName: grucloud
hasGCloud: true
config:
bucketName: grucloud.org
websiteDir: ./websites/simple
managedByTag: -managed-by-gru
managedByKey: managed-by
managedByValue: grucloud
region: europe-west4
zone: europe-west4-aFollow the manual steps at the domain name verification documentation.
This chart shows the GruCloud CLI main commands:
Deploy this infrastructure with the apply command
gc applyQuerying resources on 1 provider: google
✓ google
✓ Initialising
✓ Listing 7/7
✓ Querying
✓ Bucket 1/1
✓ Object 1/1
✓ SslCertificate 1/1
✓ BackendBucket 1/1
✓ UrlMap 1/1
✓ HttpsTargetProxy 1/1
✓ GlobalForwardingRule 1/1
┌────────────────────────────────────────────────────────────────────┐
│ Plan summary for provider google │
├────────────────────────────────────────────────────────────────────┤
│ DEPLOY RESOURCES │
├────────────────────┬───────────────────────────────────────────────┤
│ Bucket │ grucloud.org │
├────────────────────┼───────────────────────────────────────────────┤
│ Object │ index.html │
├────────────────────┼───────────────────────────────────────────────┤
│ SslCertificate │ ssl-certificate │
├────────────────────┼───────────────────────────────────────────────┤
│ BackendBucket │ backend-bucket │
├────────────────────┼───────────────────────────────────────────────┤
│ UrlMap │ url-map │
├────────────────────┼───────────────────────────────────────────────┤
│ HttpsTargetProxy │ https-target-proxy │
├────────────────────┼───────────────────────────────────────────────┤
│ GlobalForwardingR… │ global-forwarding-rule │
└────────────────────┴───────────────────────────────────────────────┘
Deploying resources on 1 provider: google
✓ google
✓ Initialising
✓ Deploying
✓ Bucket 1/1
✓ Object 1/1
✓ SslCertificate 1/1
✓ BackendBucket 1/1
✓ UrlMap 1/1
✓ HttpsTargetProxy 1/1
✓ GlobalForwardingRule 1/1
✓ default::onDeployed
✓ add dns record for the load balancer
✓ get https://storage.googleapis.com/grucloud.org/index.html
✓ get https://storage.googleapis.com/grucloud.org
✓ ssl certificate ready
✓ get https://grucloud.org
7 resources deployed of 7 types and 1 provider
Running OnDeployedGlobal resources on 1 provider: google
Command "gc a -f" executed in 11m 48s
fredericheem@pc7 website-https %At the end of the deployment of the GCP resources, the onDeployed hook is invoked.
First, a DNS type A record is added to map the domain name to the load balancer's IPv4 address, i.e the GlobalForwardingRule resource.
The SSL certificate is waiting for this record to verify the ownership of the domain. It may take a few minutes for the SSL certificate to be ready.
The last stage is to get the webpage with HTTPS.
It ensures the deployment is completed successfully.
It ensures the deployment is completed successfully.
Verity the state of the resource with the gc list command, the --graph generates a graph of the live resources.
gc list --graph
Listing resources on 1 provider: google
✓ google
✓ Initialising
✓ Listing 7/7
┌─────────────────────────────────────────────────────────────────────┐
│ 1 SslCertificate from google │
├─────────────────┬────────────────────────────────────────────┬──────┤
│ Name │ Data │ Our │
├─────────────────┼────────────────────────────────────────────┼──────┤
│ ssl-certificate │ id: 6441474765553268206 │ Yes │
│ │ creationTimestamp: 2021-06-30T03:44:17.99… │ │
│ │ name: ssl-certificate │ │
│ │ description: Managed By GruCloud │ │
│ │ selfLink: https://www.googleapis.com/comp… │ │
│ │ certificate: -----BEGIN CERTIFICATE----- │ │
│ │ MIIFUTCCBDmgAwIBAgIRAPkAAOJC7+5VCgAAAADtD… │ │
│ │ RjELMAkGA1UEBhMCVVMxIjAgBgNVBAoTGUdvb2dsZ… │ │
│ │ TEMxEzARBgNVBAMTCkdUUyBDQSAxRDQwHhcNMjEwN… │ │
│ │ MTA0ODQyWjAXMRUwEwYDVQQDEwxncnVjbG91ZC5vc… │ │
│ │ AQUAA4IBDwAwggEKAoIBAQCwg05xlwu+1ypsJgQ5W… │ │
│ │ I6TrqTwTpTq8lIwpEBvksGz2w99nJ5lLiCBhH7MRW… │ │
│ │ 4z4l7D+s/u8xCe7XB2D/B6suXPdVpPjl21kHLQUQC… │ │
│ │ dwrlJS4M3KfRYXhesJxZEeO3+PoXKw3wBkIpSRfvk… │ │
│ │ jqdpROyJRaJ/gH1/1Ixe9wxQ0xRf9jAZClyfL8M/D… │ │
│ │ aQiL+jB/x1AJYwuud04PPZuBNE3ouln8UnD5MD65C… │ │
│ │ BgNVHQ8BAf8EBAMCBaAwEwYDVR0lBAwwCgYIKwYBB… │ │
│ │ ADAdBgNVHQ4EFgQUn0Lwt6ba79AHuJDIGAlW2310Y… │ │
│ │ DrJXkZQq5dRdhpCD3lOzuJIwagYIKwYBBQUHAQEEX… │ │
│ │ dHRwOi8vb2NzcC5wa2kuZ29vZy9ndHMxZDQwMQYIK… │ │
│ │ a2kuZ29vZy9yZXBvL2NlcnRzL2d0czFkNC5kZXIwF… │ │
│ │ dWQub3JnMCEGA1UdIAQaMBgwCAYGZ4EMAQIBMAwGC… │ │
│ │ BDUwMzAxoC+gLYYraHR0cDovL2NybHMucGtpLmdvb… │ │
│ │ V0NrLmNybDCCAQYGCisGAQQB1nkCBAIEgfcEgfQA8… │ │
│ │ Vo7jTRMZM7/fDC8gC8xO8WTjAAABelyN0mYAAAQDA… │ │
│ │ 64j1+EfMUP7z2a1r49DvMLeIKdM1AiEA/JSBRq8oP… │ │
│ │ POCDVgsI/BQAdwDuwJXujXJkD5Ljw7kbxxKjaWoJe… │ │
│ │ jdKCAAAEAwBIMEYCIQDoxrQxCcEH2vVeg2AtstxI1… │ │
│ │ AOsmu4oulyYswA7MTs/Dy29W+nXk0D0mGAOzAHkCz… │ │
│ │ A4IBAQAoD2cok3xHy87yVKdF7NUtjVAS6/jB6/KUd… │ │
│ │ ZXvfhKYWZuc9WCaEUNZo45y582uuf/Wv1dBXSiH6v… │ │
│ │ fsiQzTeOA5+5EmnQLkvaSpfs1VgMwwc0w+bd3mhHa… │ │
│ │ NlSHP9oWk4Y4sk9ngaDu6p+nilPNXpKOXeVWchB5f… │ │
│ │ fSjfQ5lMpeZMQi68FPuiNkcaJ5CY0ntHcwenhUpew… │ │
│ │ 7hT0UnMmPf21WKP4EdMmmw+4dHwx │ │
│ │ -----END CERTIFICATE----- │ │
│ │ -----BEGIN CERTIFICATE----- │ │
│ │ MIIFjDCCA3SgAwIBAgINAgCOsgIzNmWLZM3bmzANB… │ │
│ │ CQYDVQQGEwJVUzEiMCAGA1UEChMZR29vZ2xlIFRyd… │ │
│ │ MBIGA1UEAxMLR1RTIFJvb3QgUjEwHhcNMjAwODEzM… │ │
│ │ MDQyWjBGMQswCQYDVQQGEwJVUzEiMCAGA1UEChMZR… │ │
│ │ Y2VzIExMQzETMBEGA1UEAxMKR1RTIENBIDFENDCCA… │ │
│ │ ggEPADCCAQoCggEBAKvAqqPCE27l0w9zC8dTPIE89… │ │
│ │ UebUQpK0yv2r678RJExK0HWDjeq+nLIHN1Em5j6rA… │ │
│ │ saztIIJ7O0g/82qj/vGDl//3t4tTqxiRhLQnTLXJd… │ │
│ │ H3Rcsejcqj8p5Sj19vBm6i1FhqLGymhMFroWVUGO3… │ │
│ │ 2190Q0Lm/SiKmLbRJ5Au4y1euFJm2JM9eB84Fkqa3… │ │
│ │ zvxtxvusLJzLWYHk55zcRAacDA2SeEtBbQfD1qsCA… │ │
│ │ DwEB/wQEAwIBhjAdBgNVHSUEFjAUBggrBgEFBQcDA… │ │
│ │ AQH/BAgwBgEB/wIBADAdBgNVHQ4EFgQUJeIYDrJXk… │ │
│ │ VR0jBBgwFoAU5K8rJnEaK0gnhS9SZizv8IkTcT4wa… │ │
│ │ CCsGAQUFBzABhhpodHRwOi8vb2NzcC5wa2kuZ29vZ… │ │
│ │ AoYkaHR0cDovL3BraS5nb29nL3JlcG8vY2VydHMvZ… │ │
│ │ MCswKaAnoCWGI2h0dHA6Ly9jcmwucGtpLmdvb2cvZ… │ │
│ │ A1UdIARGMEQwCAYGZ4EMAQIBMDgGCisGAQQB1nkCB… │ │
│ │ aHR0cHM6Ly9wa2kuZ29vZy9yZXBvc2l0b3J5LzANB… │ │
│ │ IVToy24jwXUr0rAPc924vuSVbKQuYw3nLflLfLh5A… │ │
│ │ FZbhXkBH0PNcw97thaf2BeoDYY9Ck/b+UGluhx06z… │ │
│ │ K+Xh3I0tqJy2rgOqNDflr5IMQ8ZTWA3yltakzSBKZ… │ │
│ │ uPCJvscp1/m2pVTtyBjYPRQ+QuCQGAJKjtN7R5DFr… │ │
│ │ 3cTIfzE7cmALskMKNLuDz+RzCcsYTsVaU7Vp3xL60… │ │
│ │ YgPmOT4X3+7L51fXJyRH9KfLRP6nT31D5nmsGAOgZ… │ │
│ │ VS5H0HyIBMEKyGMIPhFWrlt/hFS28N1zaKI0ZBGD3… │ │
│ │ lVlWPzXe81vdoEnFbr5M272HdgJWo+WhT9BYM0Ji+… │ │
│ │ 1dFpgJu8fF3LG0gl2ibSYiCi9a6hvU0TppjJyIWXh… │ │
│ │ JDwRjW/656r0KVB02xHRKvm2ZKI03TglLIpmVCK3k… │ │
│ │ x/9tpNFlQTl7B39rJlJWkR17QnZqVptFePFORoZmF… │ │
│ │ -----END CERTIFICATE----- │ │
│ │ -----BEGIN CERTIFICATE----- │ │
│ │ MIIFYjCCBEqgAwIBAgIQd70NbNs2+RrqIQ/E8FjTD… │ │
│ │ MQswCQYDVQQGEwJCRTEZMBcGA1UEChMQR2xvYmFsU… │ │
│ │ CxMHUm9vdCBDQTEbMBkGA1UEAxMSR2xvYmFsU2lnb… │ │
│ │ OTAwMDA0MloXDTI4MDEyODAwMDA0MlowRzELMAkGA… │ │
│ │ GUdvb2dsZSBUcnVzdCBTZXJ2aWNlcyBMTEMxFDASB… │ │
│ │ MIICIjANBgkqhkiG9w0BAQEFAAOCAg8AMIICCgKCA… │ │
│ │ ladAPKH9gvl9MgaCcfb2jH/76Nu8ai6Xl6OMS/kr9… │ │
│ │ iV6nqlKr+CMny6SxnGPb15l+8Ape62im9MZaRw1NE… │ │
│ │ KSUjB6G00j0uYODP0gmHu81I8E3CwnqIiru6z1kZ1… │ │
│ │ DrXYfiYaRQM9sHmklCitD38m5agI/pboPGiUU+6DO… │ │
│ │ j5ZPaK49l8KEj8C8QMALXL32h7M1bKwYUH+E4EzNk… │ │
│ │ cuHKZPfmghCN6J3Cioj6OGaK/GP5Afl4/Xtcd/p2h… │ │
│ │ CruOC7XFxYpVq9Os6pFLKcwZpDIlTirxZUTQAs6qz… │ │
│ │ iYH6TKX/1Y7DzkvgtdizjkXPdsDtQCv9Uw+wp9U7D… │ │
│ │ Eua++tgy/BBjFFFy3l3WFpO9KWgz7zpm7AeKJt8T1… │ │
│ │ sZWwpbkNFhHax2xIPEDgfg1azVY80ZcFuctL7TlLn… │ │
│ │ 9f6BQdgAmD06yK56mDcYBZUCAwEAAaOCATgwggE0M… │ │
│ │ BgNVHRMBAf8EBTADAQH/MB0GA1UdDgQWBBTkrysmc… │ │
│ │ BgNVHSMEGDAWgBRge2YaRQ2XyolQL30EzTSo//z9S… │ │
│ │ JQYIKwYBBQUHMAGGGWh0dHA6Ly9vY3NwLnBraS5nb… │ │
│ │ MAKGHWh0dHA6Ly9wa2kuZ29vZy9nc3IxL2dzcjEuY… │ │
│ │ oCOGIWh0dHA6Ly9jcmwucGtpLmdvb2cvZ3NyMS9nc… │ │
│ │ MAgGBmeBDAECATAIBgZngQwBAgIwDQYLKwYBBAHWe… │ │
│ │ AwMwDQYJKoZIhvcNAQELBQADggEBADSkHrEoo9C0d… │ │
│ │ NR3t5P+T4Vxfq7vqfM/b5A3Ri1fyJm9bvhdGaJQ3b… │ │
│ │ WprKASOshIArAoyZl+tJaox118fessmXn1hIVw41o… │ │
│ │ 9U5pCZEt4Wi4wStz6dTZ/CLANx8LZh1J7QJVj2fhM… │ │
│ │ +qduBmpvvYuR7hZL6Dupszfnw0Skfths18dG9ZKb5… │ │
│ │ d0lIKO2d1xozclOzgjXPYovJJIultzkMu34qQb9Sz… │ │
│ │ -----END CERTIFICATE----- │ │
│ │ │ │
│ │ managed: │ │
│ │ domains: │ │
│ │ - "grucloud.org" │ │
│ │ status: ACTIVE │ │
│ │ domainStatus: │ │
│ │ grucloud.org: ACTIVE │ │
│ │ type: MANAGED │ │
│ │ subjectAlternativeNames: │ │
│ │ - "grucloud.org" │ │
│ │ expireTime: 2021-09-28T03:48:42.000-07:00 │ │
│ │ kind: compute#sslCertificate │ │
│ │ │ │
└─────────────────┴────────────────────────────────────────────┴──────┘
┌─────────────────────────────────────────────────────────────────────┐
│ 1 Bucket from google │
├──────────────┬───────────────────────────────────────────────┬──────┤
│ Name │ Data │ Our │
├──────────────┼───────────────────────────────────────────────┼──────┤
│ grucloud.org │ kind: storage#bucket │ Yes │
│ │ selfLink: https://www.googleapis.com/storage… │ │
│ │ id: grucloud.org │ │
│ │ name: grucloud.org │ │
│ │ projectNumber: 91170824493 │ │
│ │ metageneration: 2 │ │
│ │ location: EUROPE-WEST4 │ │
│ │ storageClass: STANDARD │ │
│ │ etag: CAI= │ │
│ │ timeCreated: 2021-06-30T10:44:18.829Z │ │
│ │ updated: 2021-06-30T10:44:19.640Z │ │
│ │ website: │ │
│ │ mainPageSuffix: index.html │ │
│ │ notFoundPage: 404.html │ │
│ │ labels: │ │
│ │ managed-by: grucloud │ │
│ │ stage: dev │ │
│ │ iamConfiguration: │ │
│ │ bucketPolicyOnly: │ │
│ │ enabled: true │ │
│ │ lockedTime: 2021-09-28T10:44:18.829Z │ │
│ │ uniformBucketLevelAccess: │ │
│ │ enabled: true │ │
│ │ lockedTime: 2021-09-28T10:44:18.829Z │ │
│ │ publicAccessPrevention: unspecified │ │
│ │ locationType: region │ │
│ │ iam: │ │
│ │ kind: storage#policy │ │
│ │ resourceId: projects/_/buckets/grucloud.org │ │
│ │ version: 1 │ │
│ │ etag: CAI= │ │
│ │ bindings: │ │
│ │ - role: roles/storage.legacyBucketOwner │ │
│ │ members: │ │
│ │ - "projectEditor:grucloud-test" │ │
│ │ - "projectOwner:grucloud-test" │ │
│ │ - role: roles/storage.legacyBucketReader │ │
│ │ members: │ │
│ │ - "projectViewer:grucloud-test" │ │
│ │ - role: roles/storage.legacyObjectOwner │ │
│ │ members: │ │
│ │ - "projectEditor:grucloud-test" │ │
│ │ - "projectOwner:grucloud-test" │ │
│ │ - role: roles/storage.legacyObjectReader │ │
│ │ members: │ │
│ │ - "projectViewer:grucloud-test" │ │
│ │ - role: roles/storage.objectViewer │ │
│ │ members: │ │
│ │ - "allUsers" │ │
│ │ │ │
└──────────────┴───────────────────────────────────────────────┴──────┘
┌─────────────────────────────────────────────────────────────────────┐
│ 1 Object from google │
├────────────┬─────────────────────────────────────────────────┬──────┤
│ Name │ Data │ Our │
├────────────┼─────────────────────────────────────────────────┼──────┤
│ index.html │ kind: storage#object │ NO │
│ │ id: grucloud.org/index.html/1625049860598468 │ │
│ │ selfLink: https://www.googleapis.com/storage/v… │ │
│ │ mediaLink: https://storage.googleapis.com/down… │ │
│ │ name: index.html │ │
│ │ bucket: grucloud.org │ │
│ │ generation: 1625049860598468 │ │
│ │ metageneration: 1 │ │
│ │ contentType: text/html │ │
│ │ storageClass: STANDARD │ │
│ │ size: 333 │ │
│ │ md5Hash: tVxlJ6kUMyBVNUg4XlUdJA== │ │
│ │ crc32c: TISzGQ== │ │
│ │ etag: CMTVu72Wv/ECEAE= │ │
│ │ timeCreated: 2021-06-30T10:44:20.599Z │ │
│ │ updated: 2021-06-30T10:44:20.599Z │ │
│ │ timeStorageClassUpdated: 2021-06-30T10:44:20.5… │ │
│ │ metadata: │ │
│ │ managed-by: grucloud │ │
│ │ stage: dev │ │
│ │ │ │
└────────────┴─────────────────────────────────────────────────┴──────┘
┌─────────────────────────────────────────────────────────────────────┐
│ 1 BackendBucket from google │
├────────────────┬─────────────────────────────────────────────┬──────┤
│ Name │ Data │ Our │
├────────────────┼─────────────────────────────────────────────┼──────┤
│ backend-bucket │ id: 8720064536531564011 │ Yes │
│ │ creationTimestamp: 2021-06-30T03:44:20.676… │ │
│ │ name: backend-bucket │ │
│ │ description: Managed By GruCloud │ │
│ │ selfLink: https://www.googleapis.com/compu… │ │
│ │ bucketName: grucloud.org │ │
│ │ enableCdn: false │ │
│ │ kind: compute#backendBucket │ │
│ │ │ │
└────────────────┴─────────────────────────────────────────────┴──────┘
┌─────────────────────────────────────────────────────────────────────┐
│ 1 UrlMap from google │
├──────────┬───────────────────────────────────────────────────┬──────┤
│ Name │ Data │ Our │
├──────────┼───────────────────────────────────────────────────┼──────┤
│ url-map │ id: 1187115894224057828 │ Yes │
│ │ creationTimestamp: 2021-06-30T03:44:27.793-07:00 │ │
│ │ name: url-map │ │
│ │ description: Managed By GruCloud │ │
│ │ selfLink: https://www.googleapis.com/compute/v1/… │ │
│ │ defaultService: https://www.googleapis.com/compu… │ │
│ │ fingerprint: AFWyLkZ6QVA= │ │
│ │ kind: compute#urlMap │ │
│ │ │ │
└──────────┴───────────────────────────────────────────────────┴──────┘
┌─────────────────────────────────────────────────────────────────────┐
│ 1 HttpsTargetProxy from google │
├────────────────────┬─────────────────────────────────────────┬──────┤
│ Name │ Data │ Our │
├────────────────────┼─────────────────────────────────────────┼──────┤
│ https-target-proxy │ id: 6271089959767242210 │ Yes │
│ │ creationTimestamp: 2021-06-30T03:44:29… │ │
│ │ name: https-target-proxy │ │
│ │ description: Managed By GruCloud │ │
│ │ selfLink: https://www.googleapis.com/c… │ │
│ │ urlMap: https://www.googleapis.com/com… │ │
│ │ c: │ │
│ │ - "https://www.googleapis.com/comput… │ │
│ │ fingerprint: _7WjZisemFI= │ │
│ │ kind: compute#targetHttpsProxy │ │
│ │ │ │
└────────────────────┴─────────────────────────────────────────┴──────┘
┌─────────────────────────────────────────────────────────────────────┐
│ 1 GlobalForwardingRule from google │
├────────────────────────┬─────────────────────────────────────┬──────┤
│ Name │ Data │ Our │
├────────────────────────┼─────────────────────────────────────┼──────┤
│ global-forwarding-rule │ id: 953550543260874208 │ Yes │
│ │ creationTimestamp: 2021-06-30T03:4… │ │
│ │ name: global-forwarding-rule │ │
│ │ description: Managed By GruCloud │ │
│ │ IPAddress: 34.149.122.91 │ │
│ │ IPProtocol: TCP │ │
│ │ portRange: 443-443 │ │
│ │ target: https://www.googleapis.com… │ │
│ │ selfLink: https://www.googleapis.c… │ │
│ │ loadBalancingScheme: EXTERNAL │ │
│ │ networkTier: PREMIUM │ │
│ │ labelFingerprint: 42WmSpB8rSM= │ │
│ │ fingerprint: 3GGsVKhNuO4= │ │
│ │ kind: compute#forwardingRule │ │
│ │ │ │
└────────────────────────┴─────────────────────────────────────┴──────┘
List Summary:
Provider: google
┌────────────────────────────────────────────────────────────────────┐
│ google │
├────────────────────┬───────────────────────────────────────────────┤
│ SslCertificate │ ssl-certificate │
├────────────────────┼───────────────────────────────────────────────┤
│ Bucket │ grucloud.org │
├────────────────────┼───────────────────────────────────────────────┤
│ Object │ index.html │
├────────────────────┼───────────────────────────────────────────────┤
│ BackendBucket │ backend-bucket │
├────────────────────┼───────────────────────────────────────────────┤
│ UrlMap │ url-map │
├────────────────────┼───────────────────────────────────────────────┤
│ HttpsTargetProxy │ https-target-proxy │
├────────────────────┼───────────────────────────────────────────────┤
│ GlobalForwardingR… │ global-forwarding-rule │
└────────────────────┴───────────────────────────────────────────────┘
7 resources, 7 types, 1 provider
Command "gc list" executed in 4sLet's deploy a new version of the website, in this very simple example, edit website/simple/index.html, change something, and save the file.
The plan command helps to find out what is going to be deployed:
gc planQuerying resources on 1 provider: google
✓ google
✓ Initialising
✓ Listing 7/7
✓ Querying
✓ Bucket 1/1
✓ Object 1/1
✓ SslCertificate 1/1
✓ BackendBucket 1/1
✓ UrlMap 1/1
✓ HttpsTargetProxy 1/1
✓ GlobalForwardingRule 1/1
┌───────────────────────────────────────────────────────────────────────────────────────────────────────┐
│ 1 Object from google │
├───────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ ┌─────────────────────────────────────────────────────────────────────────────────────────────────┐ │
│ │ UPDATE: name: index.html, id: grucloud.org/index.html/1625068113228566 │ │
│ ├─────────────────────────────────────────────────────────────────────────────────────────────────┤ │
│ │ Key: md5 │ │
│ ├────────────────────────────────────────────────┬────────────────────────────────────────────────┤ │
│ │ - nnLSNGP9RyK8uy7mni91nA== │ + tVxlJ6kUMyBVNUg4XlUdJA== │ │
│ └────────────────────────────────────────────────┴────────────────────────────────────────────────┘ │
└───────────────────────────────────────────────────────────────────────────────────────────────────────┘
┌────────────────────────────────────────────────────────────────────────────────────────────────┐
│ Plan summary for provider google │
├────────────────────────────────────────────────────────────────────────────────────────────────┤
│ DEPLOY RESOURCES │
├────────────────────┬───────────────────────────────────────────────────────────────────────────┤
│ Object │ index.html │
└────────────────────┴───────────────────────────────────────────────────────────────────────────┘
1 resource to deploy on 1 provider
Command "gc p" executed in 4sIn this case, gc computes the MD5 hash of the file and compares it with the live version.
Next, use the apply command to effectively deploy.
Next, use the apply command to effectively deploy.
Dispose of the infrastructure in the right order with:
gc destroy┌─────────────────────────────────────────────────────────────────────────────┐
│ Destroy summary for provider google │
├────────────────────┬────────────────────────────────────────────────────────┤
│ SslCertificate │ ssl-certificate │
├────────────────────┼────────────────────────────────────────────────────────┤
│ Bucket │ grucloud.org │
├────────────────────┼────────────────────────────────────────────────────────┤
│ BackendBucket │ backend-bucket │
├────────────────────┼────────────────────────────────────────────────────────┤
│ UrlMap │ url-map │
├────────────────────┼────────────────────────────────────────────────────────┤
│ HttpsTargetProxy │ https-target-proxy │
├────────────────────┼────────────────────────────────────────────────────────┤
│ GlobalForwardingR… │ global-forwarding-rule │
└────────────────────┴────────────────────────────────────────────────────────┘
Destroying resources on 1 provider: google
✓ google
✓ Initialising
✓ Destroying
✓ SslCertificate 1/1
✓ Bucket 1/1
✓ BackendBucket 1/1
✓ UrlMap 1/1
✓ HttpsTargetProxy 1/1
✓ GlobalForwardingRule 1/1
✓ default::onDestroyed
✓ remove the load balancer A DNS record
6 resources destroyed, 6 types on 1 provider
Running OnDestroyedGlobal resources on 1 provider: google
Command "gc d -f" executed in 56s18
