Todo API with Express Js and MongoDB

In this article, I’ll be walking through APIs and then showing you how to build an API which in this case a Todo API with basic CRUD (Create, Read, Update, Delete) features using the Express js framework and the MongoDB NoSQL database.

Prerequisites

To take fully understand this article, you should have some knowledge of the following:

Nodejs

APIs

Express js

MongoDB

What’s an API

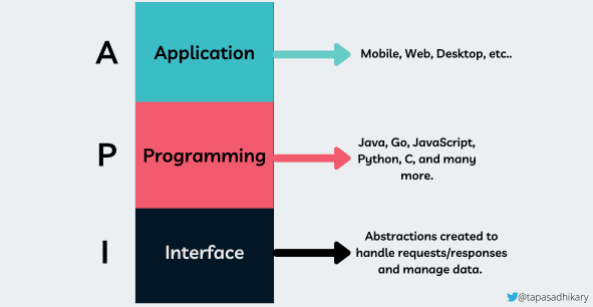

API is an acronym for Application Programming Interface. The expansion of the term API may sound a bit complex initially. You may wonder what precisely the Application Programming Interface means? In layman terms, API is a service that allows two or more applications to talk to each other even when they don't speak the same language. An API is an abstraction that allows a way to exchange data between applications written in any language.

As API abstracts the data underneath(stored in a database, file-system), we can design it to send only the information required by the client. The image below shows an example of the web API where multiple web clients use API services to interact with the data stored in different storage types. The best part is, the client doesn't have to know where the data resides as long as it maintains the rules to use the APIs.

Types Of APIs

We are going to discuss the types of APIs briefly before we go on with our Todo API.

REST APIs

REST stands for Representational State Transfer. It is an architecture built for web applications to access and transfer data over HTTP/HTTPS protocols. With REST APIs, we can make requests using the GET, PUT/PATCH, POST, and DELETE methods. These are already available methods for HTTP and HTTPS.

These methods are used to create, read, update, and delete a resource.

Create ⇒ POST

Read ⇒ GET

Update ⇒ PUT/PATCH

Delete ⇒ DELETE

A resource in the REST API architecture refers to the object that we create, read, update, or delete. It can be anything like student information, book, movies, user, todo etc.

GraphQL APIs

GraphQL is a query language and server-side runtime for application programming interfaces (APIs) that prioritizes giving clients exactly the data they request and no more.

GraphQL is designed to make APIs fast, flexible, and developer-friendly. It can even be deployed within an integrated development environment (IDE) known as GraphiQL. As an alternative to REST, GraphQL lets developers construct requests that pull data from multiple data sources in a single API call.

API developers use GraphQL to create a schema to describe all the possible data that clients can query through that service. A GraphQL schema is made up of object types, which define the kind of object you can request and what fields it has.

As queries or mutations come in, GraphQL validates them against the schema. GraphQL then executes the validated queries or mutations. If we were to think about them in terms of the create, read, update and delete (CRUD) model, a query would be equivalent to read. All the others (create, update, and delete) are handled by mutations.

Real-time APIs

Real-time APIs have gained lots of popularity in the last decade. This is because applications want to make the clients updated when new data becomes available in the back-end services behind the API.

Here are some popular communication protocols and methodologies that help in developing real-time APIs.

SSE(Server-Sent Events)

Socket.IO

MQTT(Message Queuing Telemetry Transport)

CREATING OUR TODO APP

We are going to create our Todo app with basic CRUD features, but first, we need to initialise our app and install the dependencies for the App

npm init

This will prompt some questions asked, you can answer them appropriately, and when this is done, a package.json file is created for you.

Installing Dependencies

Next, we need to install the required dependencies. Type the following in your terminal:

npm install express dotenv mongoose

Now, we need to structure our App. Below is the structure of our App will look like.

The models folder has a todos model we defined for our database.

The routes contain a file api.js in which we defined our routes for the API.

The app.js file is the file where we configured our app.

The index.js file is where we run our server

Building Our Application

Configuring, running the server and connecting database. For the database, we are going to use a mongodb odm to communicate with the database which is mongoose which we have installed as a dependency. In your index.js, write the following code to set up your server.

const express = require('express'),
    config = require('./app'),
    path = require("path");
    app = express(),
    dotenv = require('dotenv').config();

app = config(app);
app.set("port", process.env.PORT || 5000);

// Connect mongo
const mongoose = require('mongoose');
mongoose.connect(process.env.MONGODB_URI, {
  useUnifiedTopology: true,
  useNewUrlParser: true,
});
mongoose.connection.on("open", function () {
  console.log("Mongoose Connected Successfully!");
});
mongoose.connection.on("error", function(err) {
    console.log("Could not connect to mongo server!");
    return console.log(err.message);
  });

//  Server
const server = app.listen(app.get("port"), function () {
  console.log("Server up: http://localhost:" + app.get("port"));
});

In your config file, which is app.js, write the following code to configure your middleware functions.

const createError = require('http-errors');
const express = require('express');
const path = require('path');
const cookieParser = require('cookie-parser');
const logger = require('morgan');
const app = express();

// view engine setup
module.exports = function(app) {
  app.use(logger('dev'));
  app.use(express.json());
  app.use(express.urlencoded({ extended: true }));
  const api = require('./routes/api');
  app.use('/api/v1', api);
  // catch 404 and forward to error handler
  app.use(function(req, res, next) {
    next(createError(404));
  });

  // error handler
  app.use(function(err, req, res, next) {
  // set locals, only providing error in development
  res.locals.message = err.message;
  res.locals.error = req.app.get('env') === 'development' ? err : {};

  // render the error page
  res.status(err.status || 500);
  res.render('error');
  });
  return app;
};

Create a .env file in your route folder and fill it with the following:

MONGODB_URI=Mongodb URI connection string

Creating Our Todo Model

We are going to create our Todo model for our MongoDB database.
In our models folder which was shown above, we have a todos.js file which is where we’ll define our Todo model. Paste the code below to help with that.

const mongoose = require('mongoose');
const Schema = mongoose.Schema;

//create schema for todo
const TodoSchema = new Schema({
  todo: {
    type: String,
    required: [true, 'The todo text field is required']
  }
})

//create model for todo
const Todos = mongoose.model('todo', TodoSchema);
module.exports = Todos;

Defining Our Routes

In this API, we are going to define four routes which are:

Create Route: This is the route we use to add a Todo

Get Route: This is the route where we are going to get all Todos by id’s ( Mongodb gives every new document a unique Id, so it’s best to use it to get all document(s) )added to the database.

Update Route: In this route, we are going to update an existing Todo by first getting the document by it’s Id and then changing the document todo.

Delete Route: This is where we’ll be deleting a todo by its id since it’s unique.

To create the Routes, in our routes folder like above, we create an api.js file where we’ll define all our routes and type the following:

const express = require('express');
const router = express.Router();
const Todo = require('../models/todos')

// Get all Todos
router.get('/todos', async (req, res) => {
  //this will return all the data, exposing only the id and todo field to the client
  try {
    const todos = await Todo.find({}, 'todo')
    if (!todos) {
      return res.status(400).json({
        success: false,
        message: 'Todos not retrieved',
        todos: []
      })
    }
    return res.status(200).json({
      success: true,
      message: 'Todos retrieved successfully',
      todos: todos
    })
  } catch (error) {
    return res.status(400).json({
      success: false,
      message: error.message
    })
  }
});

// Create a Todo
router.post('/todos', async (req, res) => {
  try {
    const { todo } = req.body
    const todos = await Todo.create({todo})
    if (!todos) {
      return res.status(400).json({
      success: false,
      message: 'Problem creating Todo',
      todo: null
      })
    }
    return res.status(200).json({
      success: true,
      message: 'Successfully created Todo',
      todo: todos
    })
  } catch (error) {
    return res.status(400).json({
      success: false,
      message: error.message
    })
  }
})

// Update a Todo
router.patch('/todos/:id', async (req, res) => {
  try {
    const { todo } = req.body
    const update = await Todo.findOneAndUpdate({_id: req.params.id}, {todo})
    if (!update) {
      return res.status(400).json({
        success: false,
        message: 'Not successfully updated'
      })
    }
    return res.status(200).json({
      success: true,
      message: 'Todo successfully updated'
    })
  } catch (error) {
    return res.status(400).json({
      success: false,
      message: error.message
    })
  }
})

// Delete a Todo
router.delete('/todos/:id', async (req, res) => {
  try {
    const deleteTodo = await Todo.findOneAndDelete({_id: req.params.id})
    if (!deleteTodo) {
      return res.status(400).json({
        success: false,
        message: 'Todo not deleted'
      })
    }
    return res.status(200).json({
      success: true,
      message: 'Todo successfully deleted'
    })
  } catch (error){
    return res.status(400).json({
      success: false,
      message: error.message
    })
  }
})

module.exports = router;

Testing Our API Routes

Now, we test our API endpoints using postman below:

Testing the Create Route:

Testing the update route

Testing the Get all Todos route

Testing the Delete Todo route

Conclusion

In this article, we took a good look into APIs, learnt a few and eventually built a Todo API with Express Js and MongoDB which has CRUD (Create, Read, Update, Delete) features. We connected to our MongoDB database using the mongoose ODM to be able to add, find, update and delete from our MongoDB database.

We finally tested our endpoints and made sure they worked the way we wanted them to.

The source code for this project is available on Github. If you enjoyed this article, please share it with your friends who will need it. You can reach me on Twitter if you have any questions.
